The D4G-32 is a 2-position shorting switch with a current rating of 500mA and adjustable index stops. It features a brass contact material with silver plating and a lug termination. The switch is lead-free and has a DC rated voltage of 28V. It is part of the D4 series and is suitable for use in a variety of applications.
Current Rating500mA
Quick Jump:
Technical Specifications
Electroswitch D4G-32 technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Silver |
| Contact Style | Shorting |
| Current Rating | 500mA |
| Index Angle | 30° |
| Index Stops | Adjustable |
| Lead Free | Lead Free |
| Number of Decks | 1 |
| Number of Poles per Deck | 2 |
| Number of Positions | 5 |
| Series | D4 |
| Termination | Lug |
| Voltage Rating (AC) | 115V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Electroswitch D4G-32 Datasheet
Download the complete datasheet for Electroswitch D4G-32 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

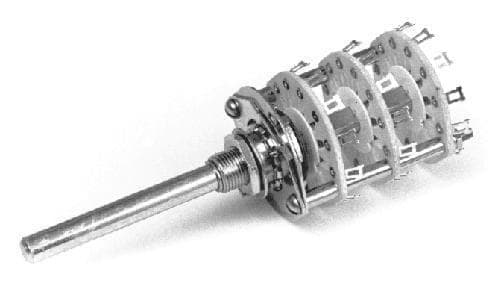

Product Images
