Supercapacitor, 70mF capacitance with a tolerance of -20% to +80%, rated for 3.3V. Features low 100 Ohm ESR and operates within a temperature range of -10°C to 70°C. Designed for surface mount (SMD/SMT) applications, supplied in cut tape packaging. RoHS compliant.
PackageSMD/SMT
Capacitance70mF
Voltage Rating3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Elna DSK-3R3H703T414-HRL technical specifications.
General
| Capacitance | 70mF |
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 100R |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | DSK |
| Termination | SMD/SMT |
| Tolerance | 80% |
| Voltage Rating | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Elna DSK-3R3H703T414-HRL Datasheet
Download the complete datasheet for Elna DSK-3R3H703T414-HRL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

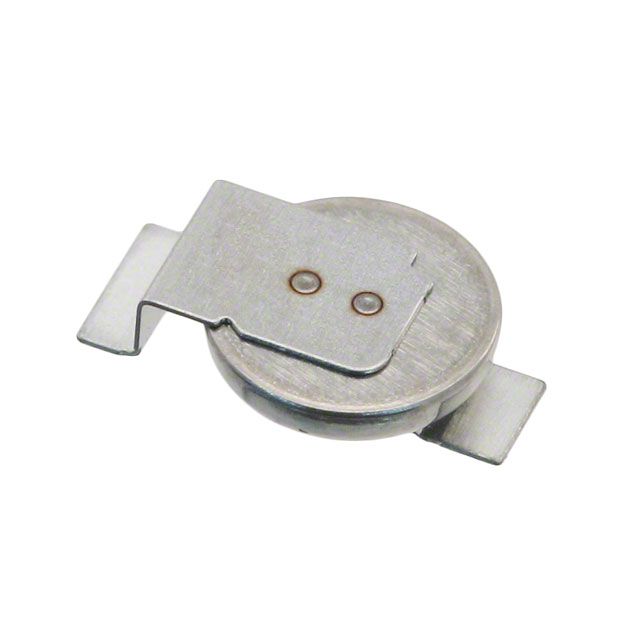

Product Images
