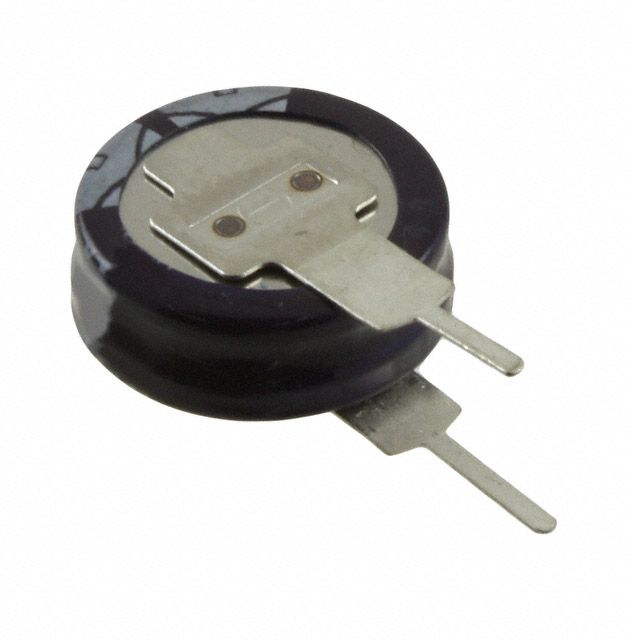

This 330mF aluminum electrolytic capacitor has a maximum operating temperature of 70°C and a minimum operating temperature of -25°C. It is lead-free and RoHS compliant. The capacitor has a diameter of 11.5mm and a height of 13mm, with a lead diameter of 0.8mm and a lead pitch of 5mm. It is packaged in bulk and available in quantities of 200.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Elna DX-5R5V334U datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 330mF |
| Package/Case | Aluminum |
| Diameter | 11.5mm |
| ESR (Equivalent Series Resistance) | 75R |
| Height | 13mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Length | 13mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | DX |
| Termination | PC Pins |
| Tolerance | 80% |
| Voltage Rating | 5.5V |
| DC Rated Voltage | 5.5V |
| RoHS | Compliant |
