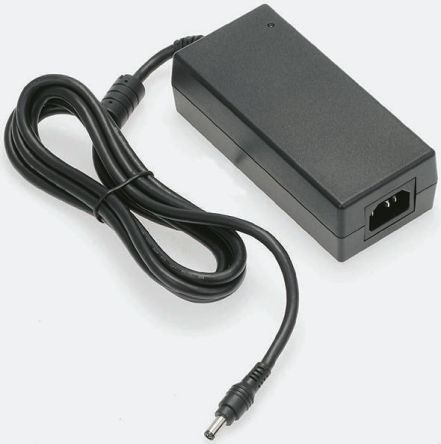

AC/DC Power Supply, 30W, 5V output voltage, 6A maximum output current. Features 88% efficiency, 90-264V AC input range, and a single fixed output. Includes a 78.74-inch cord and a 2.5mm I.D. x 5.5mm O.D. x 9.5mm barrel plug output connector. Operating temperature range is 0°C to 40°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Emerson DPS52-M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Emerson DPS52-M technical specifications.
| Approvals | CB |
| Cord Length | 78.74inch |
| Current - Output 1 | 6A |
| Depth | 60.7mm |
| Efficiency | 88% |
| Height | 1.62inch |
| Length | 133mm |
| Max Input Voltage (AC) | 264V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage | 300V |
| Min Input Voltage | 127V |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 6A |
| Max Output Power | 30W |
| Max Power Dissipation | 30W |
| Max Supply Voltage | 264V |
| Min Supply Voltage | 90V |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Output Current | 6A |
| Output Power | 30W |
| Output Type | Fixed |
| Output Voltage | 5V |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | DPS50-M |
| Voltage - Output 1 | 5V |
| Weight | 1.1lb |
| Width | 2.39inch |
| RoHS | Compliant |
