Enclosed AC/DC switching power supply, 110W output power, featuring four independent outputs: 5V at 9A, 12V at 4.5A, -12V at 700mA, and 24V. This chassis mount unit operates from 5V to 264V AC input, with an efficiency of 70%. Designed for panel mounting, it measures 7 inches in length, 4 inches in width, and 1.8 inches in height, with a depth of 101.6mm. Operating temperature range is 0°C to 50°C, and the product is RoHS compliant.
MountingPanel
Power110W
Quick Jump:
Technical Specifications
Emerson GLQ114 technical specifications.
General
| Current - Output 1 | 9A |
| Current - Output 2 | 4.5A |
| Current - Output 3 | 700mA |
| Depth | 101.6mm |
| Efficiency | 70% |
| Height | 1.8inch |
| Length | 7inch |
| Max Input Voltage | 264V |
| Min Input Voltage | 5V |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 3.5A |
| Max Output Power | 80W |
| Mount | Panel |
| Nominal Output Voltage | 24V |
| Number of Outputs | 4 |
| Output Current | 9A |
| Output Power | 110W |
| Output Voltage | 12V |
| Package Quantity | 1 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | -12V |
| Weight | 0.57kg |
| Width | 4inch |
Compliance
| RoHS | Compliant |
Datasheet
Emerson GLQ114 Datasheet
Download the complete datasheet for Emerson GLQ114 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

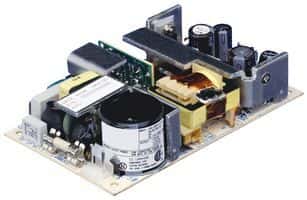

Product Images
