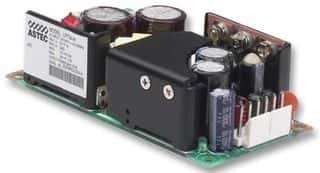

50W, 3-output switching power supply with 5V/8A, 12V/3A, and -12V/0.5A outputs. Features 80% efficiency, 90-264VAC input, and a maximum output power of 50W. This chassis mount unit operates from 0°C to 50°C and is CE and RoHS compliant. Dimensions are 101.6mm (L) x 50.8mm (D) x 33.02mm (H).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Emerson LPT52-M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CE |
| Current - Output 1 | 8A |
| Current - Output 2 | 3A |
| Current - Output 3 | 500mA |
| Depth | 50.8mm |
| Efficiency | 80% |
| Height | 1.3inch |
| Length | 101.6mm |
| Max Input Voltage (DC) | 300V |
| Min Input Voltage (DC) | 127V |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 3A |
| Max Output Power | 50W |
| Max Power Dissipation | 55W |
| Mount | Chassis Mount, Chassis |
| Nominal Output Voltage | -12V |
| Number of Outputs | 3 |
| Output Current | 8A |
| Output Power | 55W |
| Output Voltage | 5V |
| Package Quantity | 200 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LPT50-M |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Weight | 7.2oz |
| Width | 2inch |
| RoHS | Compliant |
