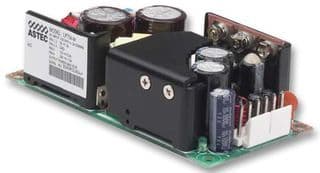

AC/DC open frame power supply, medical grade, delivering 55W maximum output power. Features three outputs: 5V at 8A, 15V at 2.4A, and -15V at 500mA. Operates with AC input voltage from 90V to 264V and DC input from 127V to 300V, boasting 80% efficiency. Designed for chassis mounting, this power supply operates within a temperature range of 0°C to 50°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Emerson LPT53-M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CE |
| Current - Output 1 | 8A |
| Current - Output 2 | 2.4A |
| Current - Output 3 | 500mA |
| Depth | 50.8mm |
| Efficiency | 80% |
| Height | 1.3inch |
| Length | 101.6mm |
| Max Input Voltage (DC) | 300V |
| Min Input Voltage (DC) | 127V |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 2.4A |
| Max Output Power | 55W |
| Max Power Dissipation | 55W |
| Mount | Chassis Mount, Chassis |
| Nominal Output Voltage | -15V |
| Number of Outputs | 3 |
| Output Current | 8A |
| Output Power | 55W |
| Output Voltage | 5V |
| Package Quantity | 200 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LPT50-M |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | -15V |
| Weight | 7.2oz |
| Width | 2inch |
| RoHS | Compliant |
