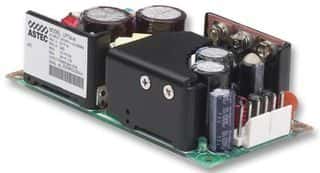

Switching power supply delivering 55W maximum output power with three outputs: 5V at 8A, 24V at 1.5A, and 12V at 500mA. Features 80% efficiency and operates within a 90-264VAC input voltage range. This chassis mount component has dimensions of 101.6mm length, 50.8mm depth, and 50.8mm height, with a weight of 7.2oz. Compliant with CE and RoHS standards, it operates between 0°C and 50°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Emerson LPT54-M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CE |
| Current - Output 1 | 8A |
| Current - Output 2 | 1.5A |
| Current - Output 3 | 500mA |
| Depth | 50.8mm |
| Efficiency | 80% |
| Height | 1.3inch |
| Length | 101.6mm |
| Max Input Voltage (DC) | 300V |
| Min Input Voltage (DC) | 127V |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Max Output Power | 55W |
| Max Power Dissipation | 55W |
| Mount | Chassis Mount, Chassis |
| Nominal Output Voltage | 12V |
| Number of Outputs | 3 |
| Output Current | 8A |
| Output Power | 55W |
| Output Voltage | 24V |
| Package Quantity | 200 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LPT50-M |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | 12V |
| Weight | 7.2oz |
| Width | 2inch |
| RoHS | Compliant |
