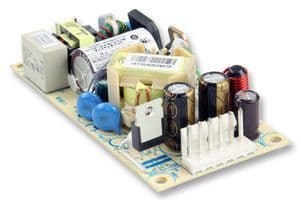

AC/DC converter delivering 48V nominal output voltage with a maximum output power of 40W. Features a single output with a maximum output current of 520mA and an efficiency of 87%. Operates within a 90V to 264V AC input voltage range and is designed for chassis mounting. Dimensions are 101.6mm length, 50.8mm depth, and 2inch width, with an operating temperature range of 0°C to 50°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Emerson NPS28-M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Emerson NPS28-M technical specifications.
| Current - Output 1 | 520mA |
| Depth | 50.8mm |
| Efficiency | 87% |
| Height | 0.86inch |
| Length | 101.6mm |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 520mA |
| Max Output Power | 40W |
| Max Power Dissipation | 25W |
| Mount | Chassis Mount |
| Nominal Output Voltage | 48V |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Power | 40W |
| Output Voltage | 48V |
| Package Quantity | 1 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | NPS20-M (40W) |
| Voltage - Output 1 | 48V |
| Weight | 0.1kg |
| Width | 2inch |
| RoHS | Compliant |
