15W DC-DC Converter module with adjustable output voltage from 0.8V to 2.5V, delivering up to 6A. Features include UVLO and SCP protection, 94% efficiency, and a compact 12.57mm x 22.1mm x 8.5mm through-hole package. Operates from a 2.95V to 3.65V input range with a nominal input of 3.3V, and is UL94 V-0 rated. This lead-free, RoHS compliant component is suitable for demanding applications with an operating temperature range of -40°C to 85°C.
PackageModule
MountingThrough Hole
Power15W
Quick Jump:
Technical Specifications
Emerson PTH03050WAD technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 6A |
| Depth | 8.5mm |
| Efficiency | 94% |
| Features | UVLO, SCP |
| Flammability Rating | UL94 V-0 |
| Height | 8.5mm |
| Lead Free | Lead Free |
| Length | 12.57mm |
| Max Input Voltage | 3.65V |
| Min Input Voltage | 2.95V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Output Power | 15W |
| Max Output Voltage | 2.5V |
| Min Output Voltage | 800mV |
| Max Power Dissipation | 15W |
| Mount | Through Hole |
| Nominal Input Voltage | 3.3V |
| Nominal Output Voltage | 2.5V |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3.3V |
| Output Current | 6A |
| Output Power | 15W |
| Output Voltage | 2.5V |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | PTH03050W (15W) |
| Voltage - Output 1 | 2.5V |
| Weight | 2.9g |
| Width | 22.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Emerson PTH03050WAD Datasheet
Download the complete datasheet for Emerson PTH03050WAD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

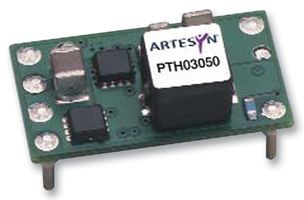

Product Images
