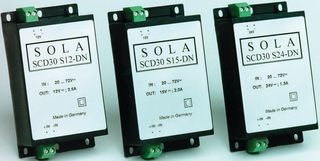

Enclosed AC/DC power supply providing a 24V nominal output voltage at 1.3A, delivering up to 30W of power. Features a wide DC input voltage range from 20V to 72V and operates across an ambient temperature range of -25°C to 65°C. Mounting options include panel, DIN rail, chassis, and screw terminals. CE approved for safety compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Emerson SCD30S24-DN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Emerson SCD30S24-DN technical specifications.
| Approvals | CE |
| Current - Output 1 | 1.3A |
| Current Rating | 1.3A |
| Depth | 33mm |
| Height | 1.3inch |
| Length | 4.72inch |
| Max Input Voltage (DC) | 72V |
| Min Input Voltage (DC) | 20V |
| Max Input Voltage | 72V |
| Min Input Voltage | 20V |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 1.3A |
| Max Output Power | 30W |
| Mount | Panel, DIN Rail, Chassis Mount, Screw |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 1.3A |
| Output Power | 30W |
| Output Voltage | 24V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Series | SCD |
| Voltage - Output 1 | 24V |
| Weight | 13.756845oz |
| Width | 2.56inch |
| RoHS | Compliant |
