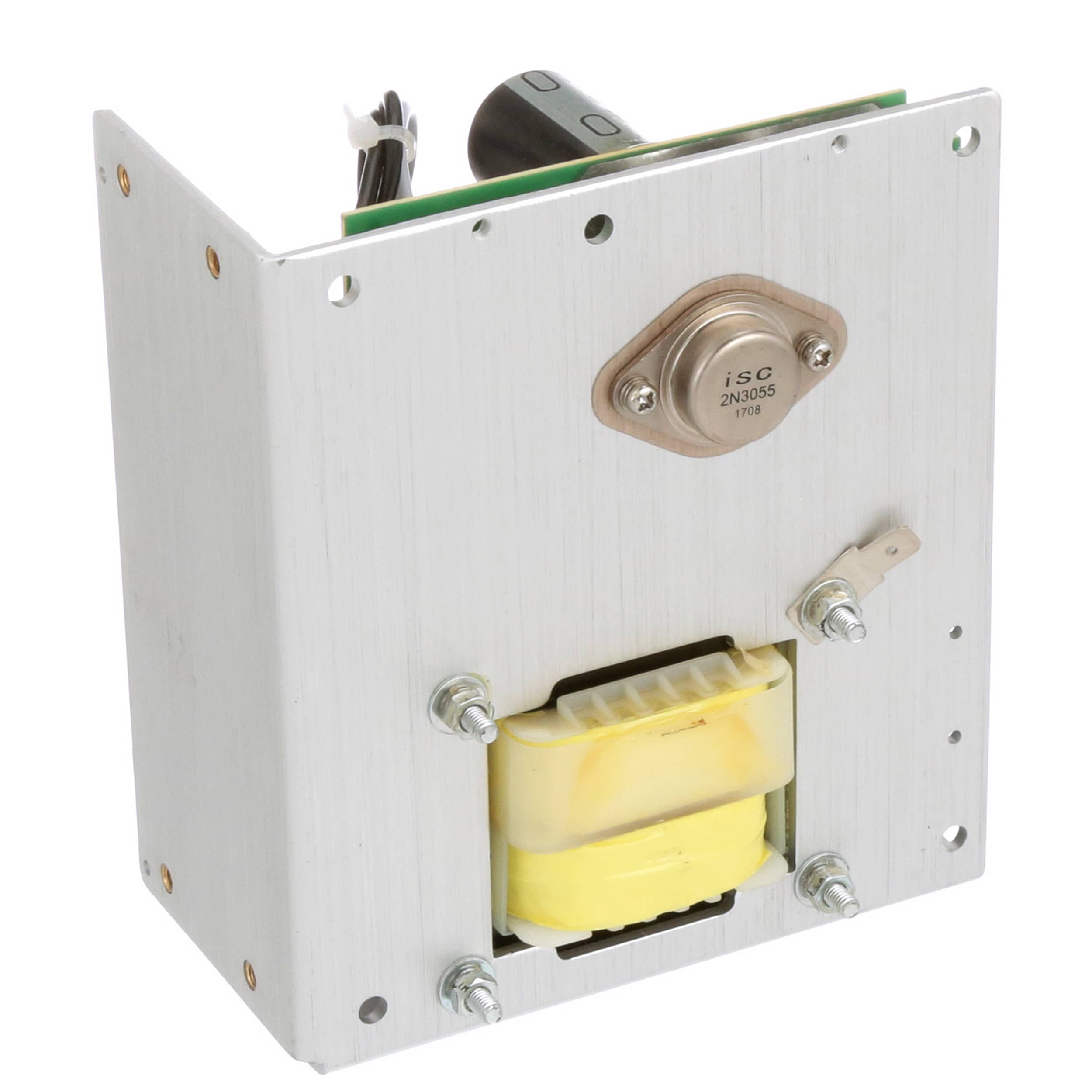

The Emerson SLS-24-024T is a 24V AC/DC power supply with a maximum output current of 2.4A and a maximum output power of 58W. It operates within a temperature range of 0-50°C and meets UL and CE approvals. The supply has a single output and is mounted via a panel screw. Its dimensions are 142.6mm in length, 123.5mm in width, and 62.8mm in height, with a weight of 1.8kg. The supply is packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Emerson SLS-24-024T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CE |
| Package/Case | 100 |
| Current - Output 1 | 2.4A |
| Current Rating | 2.4A |
| Depth | 123.5mm |
| Frequency | 63Hz |
| Height | 62.8mm |
| Length | 142.6mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 2.4A |
| Mount | Panel, Screw |
| Number of Outputs | 1 |
| Output Current | 2.4A |
| Output Power | 58W |
| Output Voltage | 24V |
| Packaging | Bulk |
| Radiation Hardening | No |
| Voltage - Output 1 | 24V |
| Weight | 1.8kg |
| Width | 123.5mm |
| RoHS | Not CompliantNo |
Download the complete datasheet for Emerson SLS-24-024T to view detailed technical specifications.
