Technical Specifications

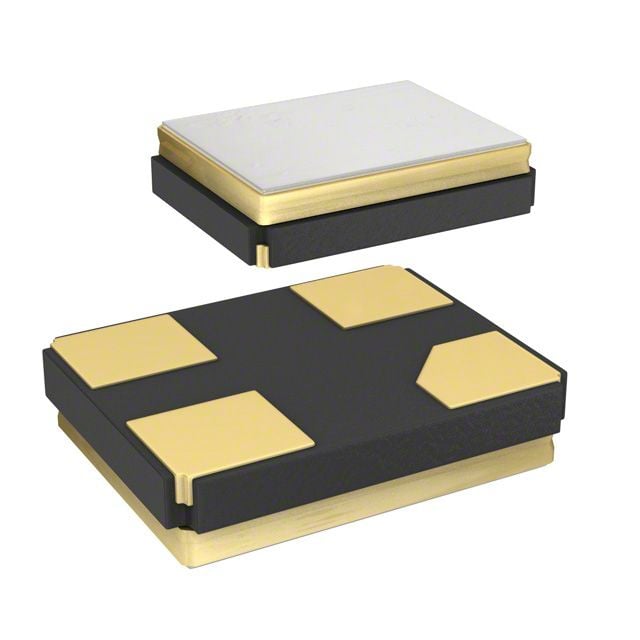

Epson FA-20H25.0000MF20X-K0 technical specifications.
General
| Package/Case | SMD/SMT |
| Drive Level | 200uW |
| ESR (Equivalent Series Resistance) | 80R |
| Frequency | 25MHz |
| Frequency Stability | 20ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.022inch |
| Length | 0.098inch |
| Load Capacitance | 10pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Series | FA-20H |
| Termination | SMD/SMT |
| Tolerance | 10ppm |
| Weight | 0.000459oz |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Epson FA-20H25.0000MF20X-K0 Datasheet
Download the complete datasheet for Epson FA-20H25.0000MF20X-K0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
