Frequency32.768kHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Epson FC-12M32.7680KD-A3 technical specifications.
General
Package/Case
SMD/SMT
Drive Level
0.5uW
ESR (Equivalent Series Resistance)
90kR
Frequency
32.768kHz
Frequency Tolerance
30ppm
Height
0.6mm
Lead Free
Lead Free
Length
2.05mm
Load Capacitance
12.5pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
250
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
FC-12M
Termination
SMD/SMT
Tolerance
30ppm
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Epson FC-12M32.7680KD-A3 Datasheet
Download the complete datasheet for Epson FC-12M32.7680KD-A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

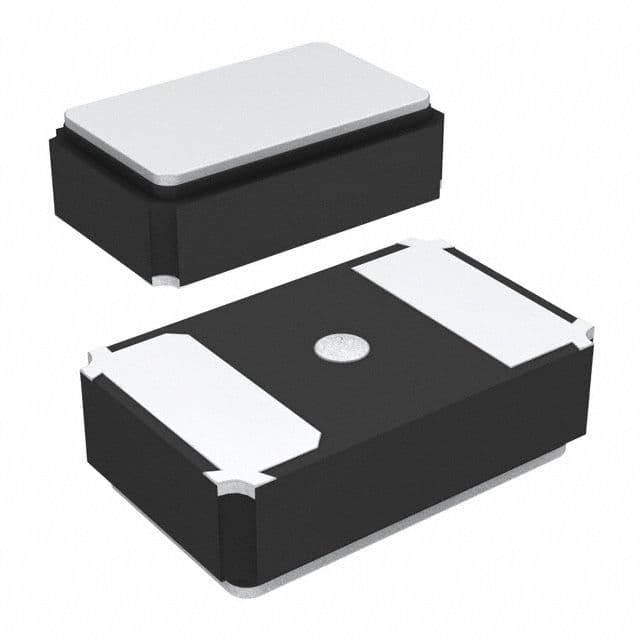

Product Images
