Technical Specifications
Epson TSX-322538.4000MF10Z-AS3 technical specifications.
General
| Package/Case | SMD/SMT |
| Drive Level | 200uW |
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 38.4MHz |
| Frequency Stability | 10ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Load Capacitance | 8.5pF |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Series | TSX-3225 |
| Series Resistance | 40R |
| Termination | SMD/SMT |
| Tolerance | 10ppm |
| Weight | 0.000564oz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Epson TSX-322538.4000MF10Z-AS3 Datasheet
Download the complete datasheet for Epson TSX-322538.4000MF10Z-AS3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

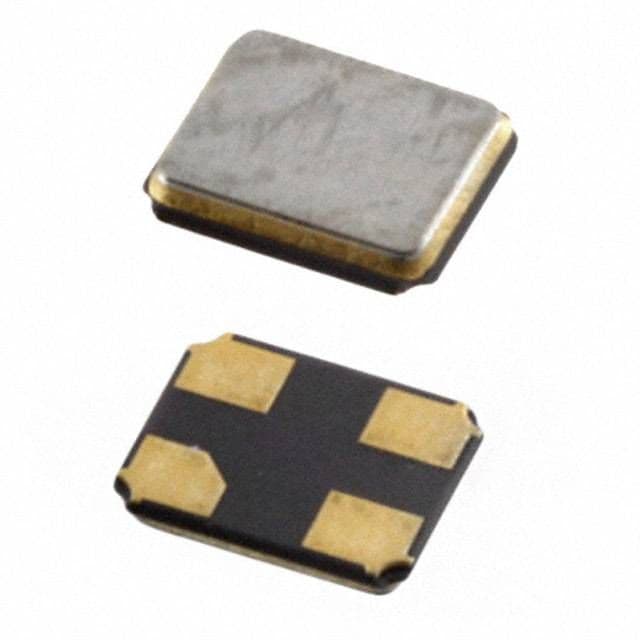

Product Images
