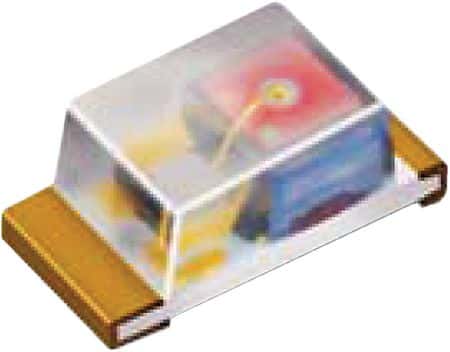

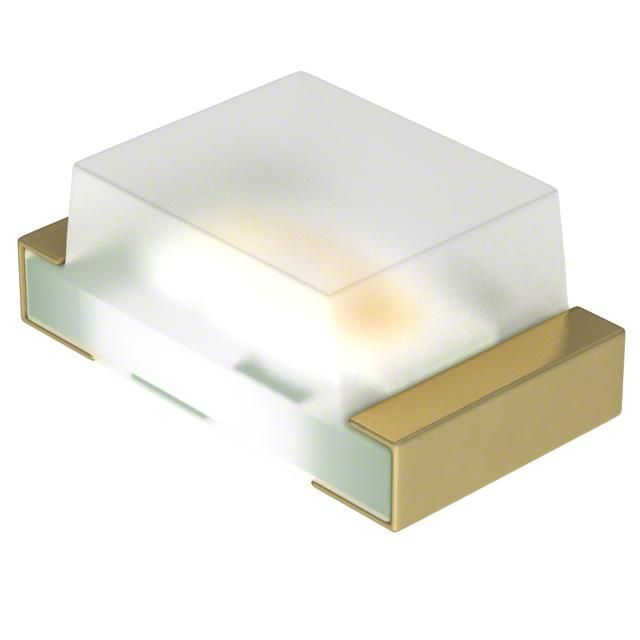

Digital ambient light sensor with I2C and analog output capabilities. Features a 2-pin SMD/SMT package for surface mounting, operating from 3.3V or 5V. This NPN polarity sensor offers a collector-emitter breakdown voltage of 5.5V and a fall time of 0.22ms. Designed for a wide operating temperature range from -40°C to 85°C, it is RoHS compliant and supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Everlight ALS-PT19-315C/L177/TR8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Everlight ALS-PT19-315C/L177/TR8 technical specifications.
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 5.5V |
| Fall Time | 0.22ms |
| Lens Style | Flat |
| Max Breakdown Voltage | 5.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Wavelength | 630nm |
| RoHS | Compliant |
