Everlight
ITR20001/T
Diffuse Photoelectric Sensor, 5mm Min, 5mm Max, 0.04-1.60mA, Rectangular, Through Hole Mount, ROHS COMPLIANT, PACKAGE-4
PackageDIP
MountingThrough Hole
Power75mW
Quick Jump:
Technical Specifications
Everlight ITR20001/T technical specifications.
General
Package/Case
DIP
Collector Emitter Breakdown Voltage
30V
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Fall Time
25us
Forward Current
20mA
Max Collector Current
20mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Through Hole
Number of Elements
1
Output Type
Phototransistor
Package Quantity
200
Packaging
Bulk
Power Dissipation
75mW
Radiation Hardening
No
Reverse Breakdown Voltage
5V
Reverse Voltage
5V
RoHS Compliant
Yes
Sensing Distance
5mm
Wavelength
940nm
Compliance
RoHS
Compliant
Datasheet
Everlight ITR20001/T Datasheet
Download the complete datasheet for Everlight ITR20001/T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

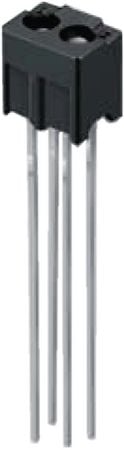

Product Images
