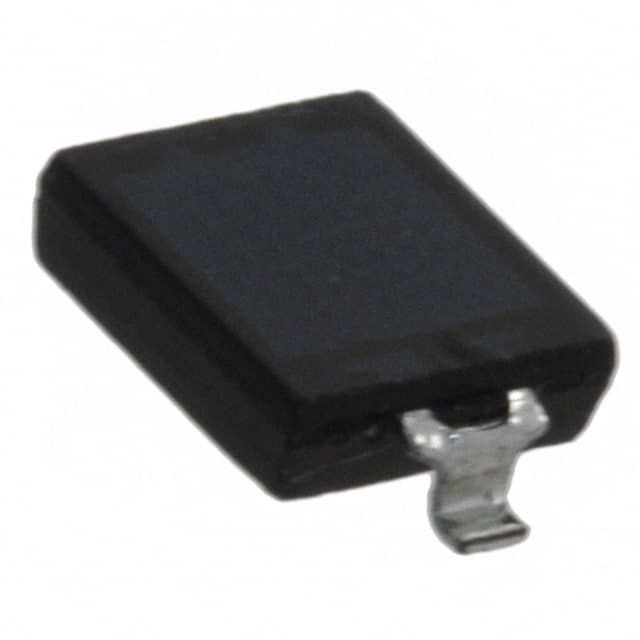

The Everlight PD70-01B/TR10 is a surface mount PIN diode with a maximum operating temperature of 85°C and a minimum operating temperature of -25°C. It has a maximum power dissipation of 150mW and a reverse breakdown voltage of 32V. The diode features a response time of 50ns and is packaged in a RoHS compliant SMD/SMT package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Everlight PD70-01B/TR10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Everlight PD70-01B/TR10 technical specifications.
| Package/Case | SMD/SMT |
| Diode Type | PIN |
| Fall Time | 50ns |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 150mW |
| Max Reverse Voltage (DC) | 32V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Response Time | 50ns |
| Reverse Breakdown Voltage | 32V |
| Reverse Voltage (DC) | 32V |
| RoHS Compliant | Yes |
| Wavelength | 940nm |
| RoHS | Compliant |
