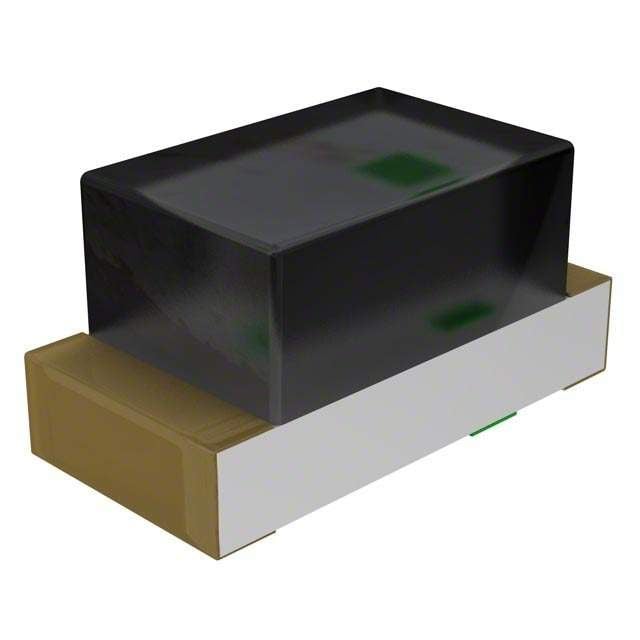

Surface mount phototransistor with NPN polarity, designed for 940nm wavelength detection. Features a 30V collector-emitter breakdown voltage and a maximum collector current of 20mA. Housed in a miniature 0603 (1608 metric) plastic SMD package with a flat black lens, suitable for top-view orientation. Operates within a temperature range of -25°C to 85°C, with a maximum power dissipation of 75mW. Supplied on tape and reel in quantities of 3000 units, and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Everlight PT19-21B/L41/TR8 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Everlight PT19-21B/L41/TR8 technical specifications.
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Collector Emitter Breakdown Voltage | 30V |
| Lens Color | Black |
| Lens Style | Flat |
| Max Breakdown Voltage | 30V |
| Max Collector Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 75mW |
| Mount | Surface Mount |
| Orientation | Top View |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| RoHS Compliant | Yes |
| Wavelength | 940nm |
| RoHS | Compliant |
Download the complete datasheet for Everlight PT19-21B/L41/TR8 to view detailed technical specifications.
