4Mb MRAM integrated circuit with a 35ns access time, featuring a 16-bit data bus and parallel interface. This surface-mount device, organized as 256K x 16, operates from a 3V to 3.6V supply voltage with a nominal 3.3V. It offers a wide operating temperature range of -40°C to 85°C and is RoHS compliant.
PackageTSOP
Current165mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Everspin MR2A16ACYS35 technical specifications.
General
Access Time
35ns
Access Time-Max
35ns
Package/Case
TSOP
Data Bus Width
16b
Density
4Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Memory Size
4Mb
Memory Type
RAM,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Operating Supply Current
105mA
Operating Supply Voltage
3.3V
Organization
256KX16
Package Quantity
135
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
165mA
Supply Voltage-Nom
3.6V
Termination
SMD/SMT
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Everspin MR2A16ACYS35 Datasheet
Download the complete datasheet for Everspin MR2A16ACYS35 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

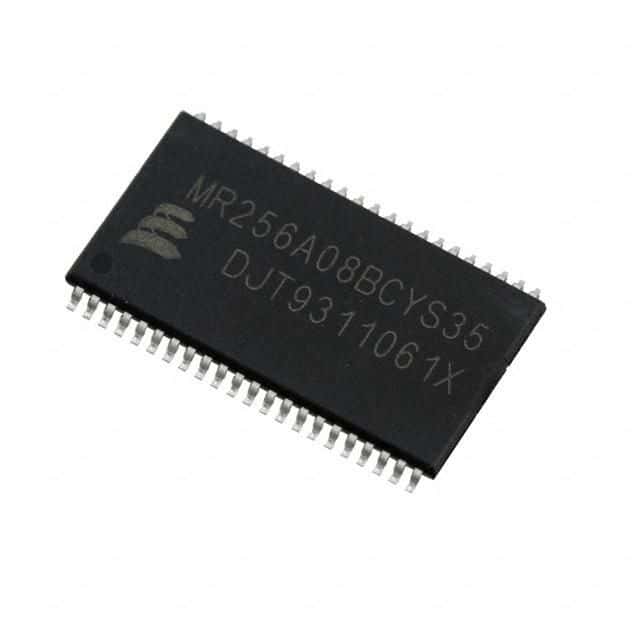

Product Images
