16Mb parallel RAM IC with 16-bit data bus width and 35ns access time. Features 1Mx16 organization, 3V to 3.6V operating supply voltage, and 110mA operating supply current. Surface mountable in an FBGA package, this lead-free and RoHS compliant component operates from -40°C to 85°C.
PackageFBGA
Current180mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Everspin MR4A16BCMA35 technical specifications.
General
| Access Time | 35ns |
| Access Time-Max | 35ns |
| Package/Case | FBGA |
| Data Bus Width | 16b |
| Density | 16Mb |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 16Mb |
| Memory Type | RAM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Current | 110mA |
| Operating Supply Voltage | 3.3V |
| Organization | 1MX16 |
| Package Quantity | 184 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 180mA |
| Supply Voltage-Nom | 3.6V |
| Word Size | 16b |
Compliance
| RoHS | Compliant |
Datasheet
Everspin MR4A16BCMA35 Datasheet
Download the complete datasheet for Everspin MR4A16BCMA35 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

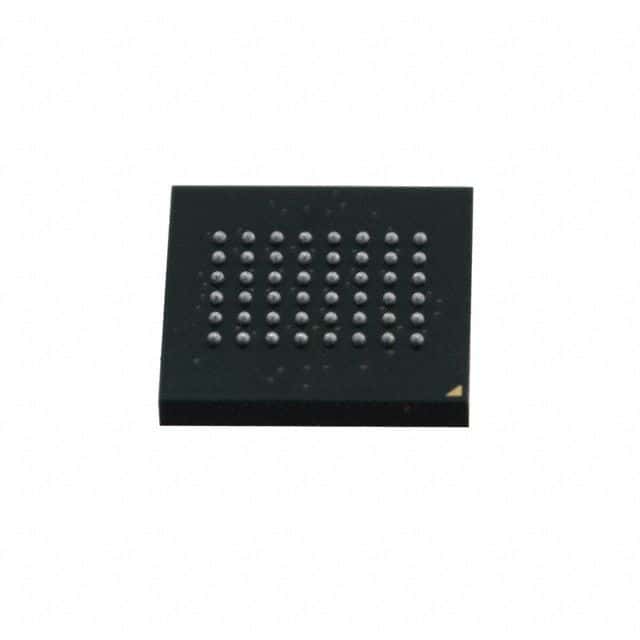

Product Images
