The SP3232EBCA-L/TR is a dual UART I2C/SPI bridge IC with a 64-byte FIFO and a data rate of 250Kbps. It is packaged in a lead-free SSOP-6 package with dimensions of 1.75mm height, 6.2mm length, and 5.3mm width. The IC operates within a temperature range of 0°C to 70°C and is compliant with RoHS standards. It requires a supply voltage of 3V to 5.5V and draws a supply current of 1mA.
PackageSSOP
Current1mA
Quick Jump:
Technical Specifications
Exar SP3232EBCA-L/TR technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 250Kbps |
| Height | 1.75mm |
| Lead Free | Lead Free |
| Length | 6.2mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Exar SP3232EBCA-L/TR Datasheet
Download the complete datasheet for Exar SP3232EBCA-L/TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

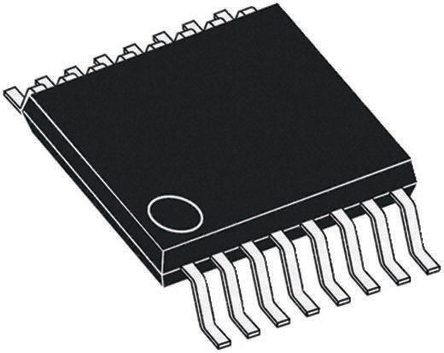

Product Images
