Dual-function line transceiver featuring 2 drivers and 2 receivers. This integrated circuit operates at a 5V supply voltage and supports data rates up to 250Kbps. Packaged in a 16-pin SOIC (SOIC-16) with dimensions of 9.9mm length, 3.9mm width, and 1.65mm height. The component is lead-free, RoHS compliant, and supplied on tape and reel. Operating temperature range is from 0°C to 70°C.
PackageSOIC
Quick Jump:
Technical Specifications
Exar SP3232EBCN-L/TR technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 250Kbps |
| Height | 1.65mm |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Number of Receivers | 2 |
| Number of Transceivers | 2 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Exar SP3232EBCN-L/TR Datasheet
Download the complete datasheet for Exar SP3232EBCN-L/TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

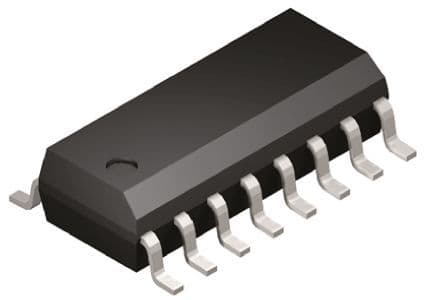

Product Images
