PackageSOIC
MountingSurface Mount
Power1.09W
Quick Jump:
Technical Specifications
Exar SP3232ECN-L technical specifications.
General
Package/Case
SOIC
Data Rate
235Kbps
Height
1.5mm
Interface
RS-232
Lead Free
Lead Free
Length
10mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
2
Number of Transmitters
2
Operating Supply Voltage
5V
Power Dissipation
1.09W
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Width
3.99mm
Compliance
RoHS
Compliant
Datasheet
Exar SP3232ECN-L Datasheet
Download the complete datasheet for Exar SP3232ECN-L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

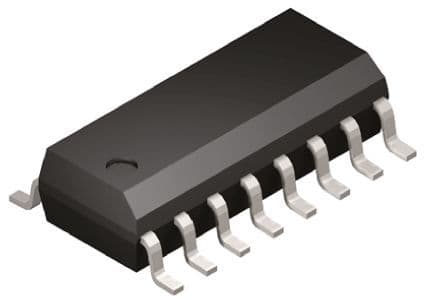

Product Images
