RS-232 transceiver with 5 drivers and 3 receivers, operating from a 3V to 5.5V supply. This surface-mount component features a 250Kbps data rate and 0.15µs propagation delay. Packaged in SSOP, it offers 17 I/Os and 3 transceivers, with a maximum power dissipation of 900mW. RoHS compliant and lead-free, it operates within a temperature range of -40°C to 85°C.
PackageSSOP
Current1mA
MountingSurface Mount
Power900mW
Quick Jump:
Technical Specifications
Exar SP3238EEA-L technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 250Kbps |
| Height | 1.75mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 5 |
| Number of I/Os | 17 |
| Number of Receivers | 3 |
| Number of Transceivers | 3 |
| Number of Transmitters | 5 |
| Package Quantity | 46 |
| Packaging | Rail/Tube |
| Power Dissipation | 900mW |
| Propagation Delay | 0.15us |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Exar SP3238EEA-L Datasheet
Download the complete datasheet for Exar SP3238EEA-L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

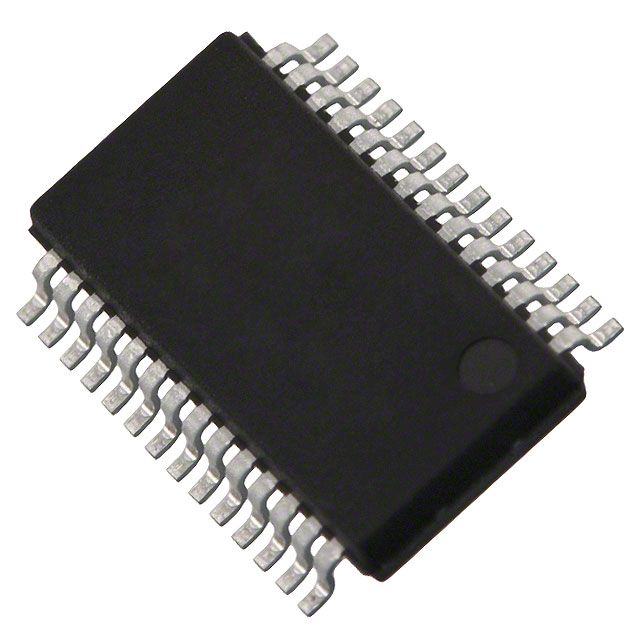

Product Images
