Dual UART, 1.5 Mbps data rate, 16-byte transmit buffer, operating voltage 2.97V to 5.5V. This surface mount integrated circuit features a TQFP package with dimensions of 7.1mm x 7.1mm x 1.05mm. It supports a maximum operating temperature of 70°C and is lead-free and RoHS compliant.
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Exar ST16C2550CQ48-F technical specifications.
General
| Package/Case | TQFP |
| Data Rate | 4Mbps |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Functions | 2 |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 5.5V |
| Termination | SMD/SMT |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Exar ST16C2550CQ48-F Datasheet
Download the complete datasheet for Exar ST16C2550CQ48-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

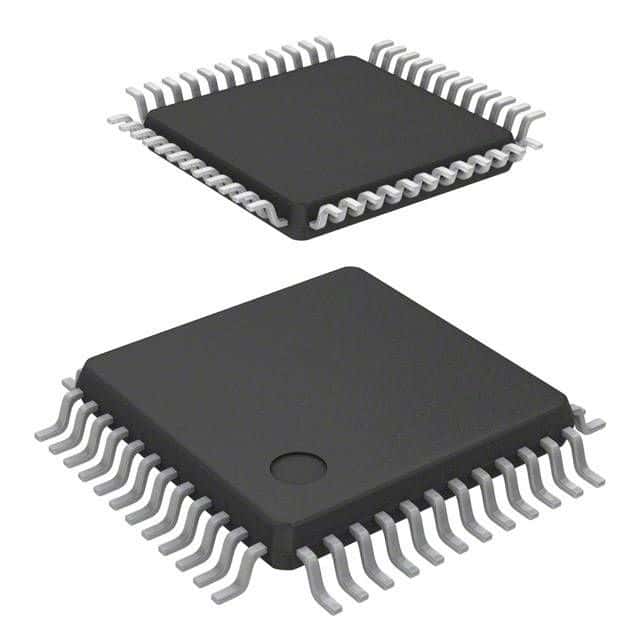

Product Images
