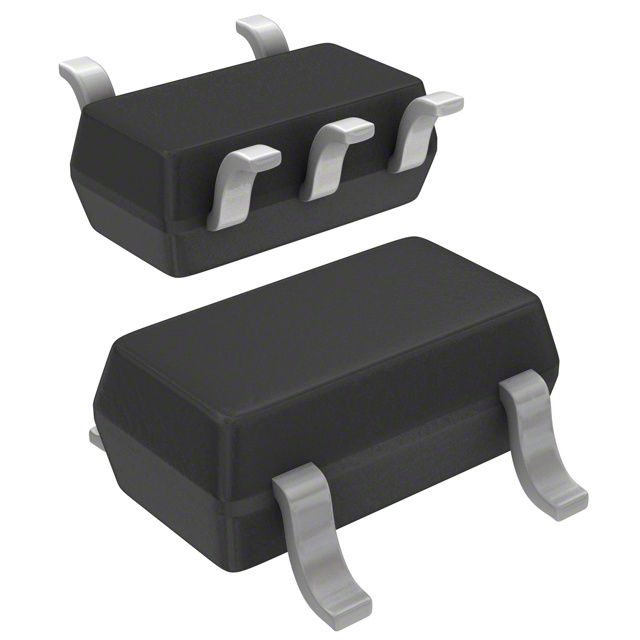

High-efficiency (97%) DC/DC PWM controller IC, featuring a synchronous rectifier for optimal performance. This surface mount component operates from a 2.5V to 5.5V input, delivering an adjustable output voltage from 600mV up to 5V with a maximum output current of 1A. Designed for compact applications, it is housed in a SOT-23-5 package measuring 1.3mm (H) x 2.9mm (L) x 1.6mm (W). The device offers a maximum switching frequency of 1.5MHz and operates across a temperature range of -40°C to 85°C, adhering to lead-free and RoHS compliant standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Exar XRP6658ISTR-F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Exar XRP6658ISTR-F technical specifications.
| Package/Case | SOT-23-5 |
| Efficiency | 97% |
| Height | 1.3mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 5V |
| Min Output Voltage | 600mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 600mV |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 1.5MHz |
| Synchronous Rectifier | Yes |
| Width | 1.6mm |
| RoHS | Compliant |
