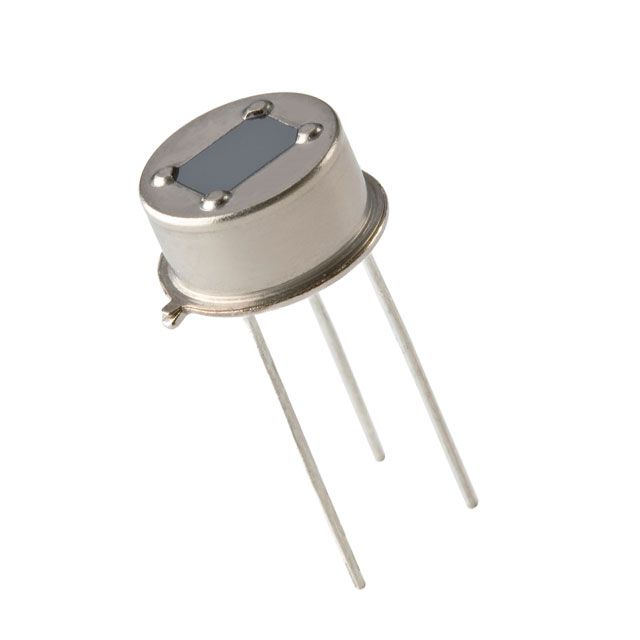

The LHI968 is a dual analog infrared sensor from Excelitas, packaged in a TO-5 case for through-hole mounting. It operates over a temperature range of -40°C to 85°C and can be supplied with voltages between 2V and 10V. This device is compliant with RoHS regulations and features a viewing angle of 100°.
Checking distributor stock and pricing after the page loads.
| Package/Case | TO-5 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Elements | 2 |
| Output Type | Analog |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Method | Infrared (IR) |
| Viewing Angle | 100° |
| RoHS | Compliant |
