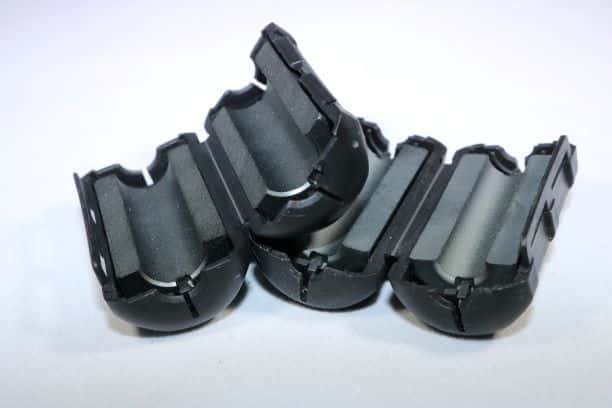

Ferrite bead for EMI suppression, featuring 75 Ohm impedance at 100MHz and a maximum operating frequency of 300MHz. This unshielded, round ferrite core has an outside diameter of 29.7mm and an inside diameter of 13.2mm, accommodating wire/cable diameters up to 12.8mm. Operating across a temperature range of -55°C to 125°C, it offers SMD/SMT termination and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Fair-Rite 0443800506 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 20.6mm |
| Impedance | 75R |
| Inside Diameter | 13.2mm |
| Length | 0.811inch |
| Material | Nylon |
| Max Frequency | 300MHz |
| Min Frequency | 25MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging |
| Outside Diameter | 29.7mm |
| Package Quantity | 220 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shape | Round |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Width | 1.169inch |
| Wire/Cable Diameter | 12.8mm |
| RoHS | Compliant |
Download the complete datasheet for Fair-Rite 0443800506 to view detailed technical specifications.
