Ferrite bead for EMI suppression, featuring a 9.85mm wire/cable diameter and 10.15mm inside diameter. Offers 210 Ohms impedance at 100MHz, with an operating frequency range of 25MHz to 300MHz. Constructed with a nylon body, this unshielded, round ferrite bead is designed for free-hanging mounting and SMD/SMT termination. Operates within a temperature range of -55°C to 125°C.
Frequency100MHz
MountingFree Hanging
Quick Jump:
Technical Specifications
Fair-Rite 0444167281 technical specifications.
General
| Body Material | Nylon |
| Depth | 39.4mm |
| Frequency | 100MHz |
| Impedance | 210R |
| Inside Diameter | 10.15mm |
| Length | 1.55inch |
| Max Frequency | 300MHz |
| Min Frequency | 25MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging |
| Package Quantity | 196 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Shape | Round |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Width | 0.933inch |
| Wire/Cable Diameter | 9.85mm |
Compliance
| RoHS | Compliant |
Datasheet
Fair-Rite 0444167281 Datasheet
Download the complete datasheet for Fair-Rite 0444167281 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

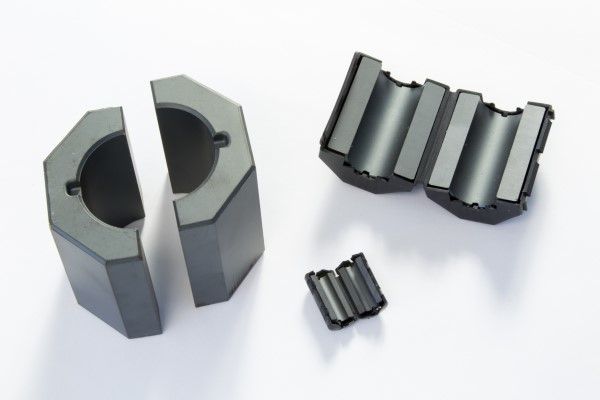

Product Images
