Ferrite bead for EMI suppression, featuring 230 Ohm impedance at 100MHz. Designed for wire/cable diameters up to 6.3mm, this unshielded, round ferrite core operates across a wide temperature range of -55°C to 125°C. Its split design allows for free-hanging mounting and accommodates cables with an inside diameter of 6.6mm. Effective from 200MHz to 1GHz, this component is supplied in bulk packaging.
Frequency1GHz
MountingFree Hanging
Quick Jump:
Technical Specifications
Fair-Rite 0461164281 technical specifications.
General
| Depth | 20mm |
| Impedance | 230R |
| Inside Diameter | 6.6mm |
| Length | 1.55inch |
| Max Frequency | 1GHz |
| Min Frequency | 200MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Free Hanging |
| Package Quantity | 196 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Shape | Round |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Width | 0.788inch |
| Wire/Cable Diameter | 6.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Fair-Rite 0461164281 Datasheet
Download the complete datasheet for Fair-Rite 0461164281 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

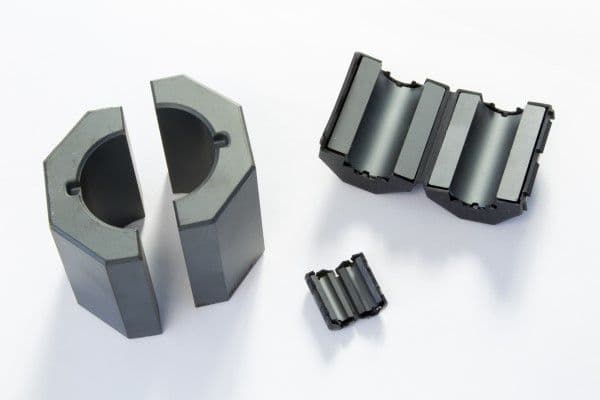

Product Images
