Round ferrite core snap-it for cable EMI suppression. Features 195 Ohms impedance at 100MHz, operating across a 200MHz to 1GHz frequency range. Designed for cables up to 9.85mm in diameter, with an inside diameter of 10.15mm. Constructed from 61-material, this unshielded core offers a temperature range of -55°C to 125°C. Dimensions include a 39.4mm depth and 0.933 inch width.
Frequency1GHz
MountingFree Hanging
Quick Jump:
Technical Specifications
Fair-Rite 0461167281 technical specifications.
General
Depth
39.4mm
Impedance
195R
Inside Diameter
10.15mm
Length
1.55inch
Max Frequency
1GHz
Min Frequency
200MHz
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Free Hanging
Package Quantity
196
Packaging
Bulk
Reach SVHC Compliant
No
Shape
Round
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Width
0.933inch
Wire/Cable Diameter
9.85mm
Compliance
RoHS
Not Compliant
Datasheet
Fair-Rite 0461167281 Datasheet
Download the complete datasheet for Fair-Rite 0461167281 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

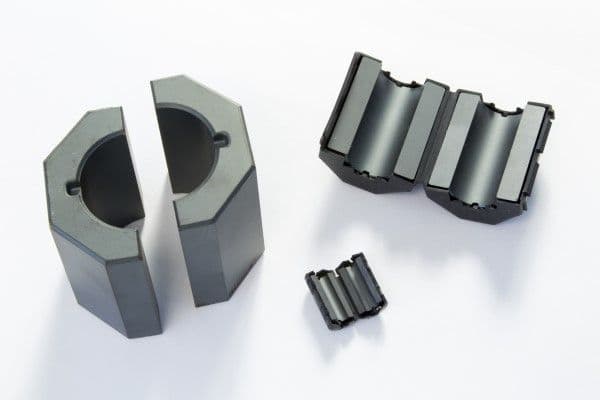

Product Images
