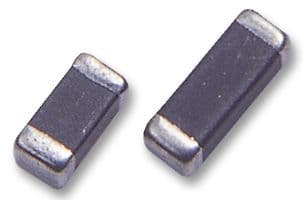

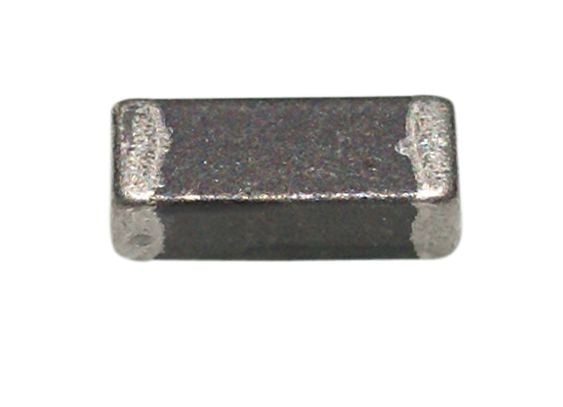

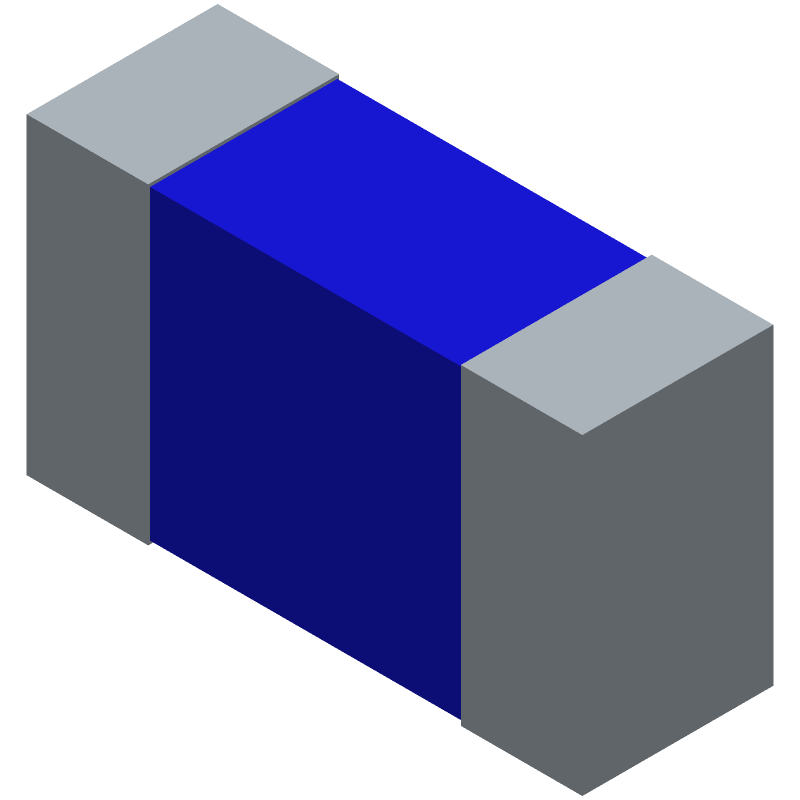

Ferrite chip filter for data line applications, featuring a 1206 EIA standard package size. Offers 6A DC current handling with 20mR DC resistance. Designed with a ferrite core material, it provides 50 Ohm impedance at 100MHz. Operating temperature range spans from -55°C to 125°C, with SMD/SMT termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Fair-Rite 2512065007Y6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Core Material | Ferrite |
| DC Current | 6A |
| DC Resistance (DCR) | 20mR |
| Depth | 1.8mm |
| Height | 1.1mm |
| Impedance | 50R |
| Length | 3.2mm |
| Max Current Rating | 6A |
| Max DC Current | 6A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Lines | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 1.6mm |
| RoHS | Compliant |
