Axial ferrite bead for EMI/RFI data line filtering. Features 470 Ohm impedance at 100MHz, operating across a 1MHz to 200MHz frequency range. Designed for through-hole mounting with axial leads, this component has a 0.75mm inside diameter and 6mm outside diameter. It operates from -55°C to 125°C and is RoHS compliant.
Frequency200MHz
PackageAxial
MountingThrough Hole
Quick Jump:
Technical Specifications
Fair-Rite 2944666661 technical specifications.
General
| Package/Case | Axial |
| Depth | 27.4mm |
| Frequency | 200MHz |
| Height | 10mm |
| Impedance | 470R |
| Inside Diameter | 0.75mm |
| Lead Length | 38mm |
| Lead/Base Style | Axial |
| Length | 10mm |
| Max Frequency | 200MHz |
| Military Standard | Not |
| Min Frequency | 1MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Lines | 1 |
| Outside Diameter | 6mm |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Axial |
| Test Frequency | 100MHz |
Compliance
| RoHS | Compliant |
Datasheet
Fair-Rite 2944666661 Datasheet
Download the complete datasheet for Fair-Rite 2944666661 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

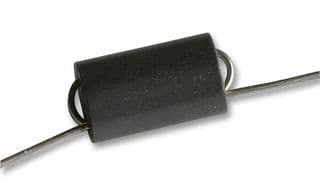

Product Images
