Axial ferrite bead for data line EMI/RFI filtering, featuring a 345 Ohm impedance at 100MHz. Designed for through-hole mounting with a 0.75mm inside diameter and 6mm outside diameter. Operates across a frequency range of 50MHz to 500MHz, with a maximum operating temperature of 125°C. Packaged in bulk quantities of 200 units.
Frequency500MHz
PackageAxial
MountingThrough Hole
Quick Jump:
Technical Specifications
Fair-Rite 2961666671 technical specifications.
General
Package/Case
Axial
Diameter
6mm
Frequency
500MHz
Height
10mm
Impedance
345R
Inside Diameter
0.75mm
Lead Length
38mm
Length
10mm
Max Frequency
500MHz
Min Frequency
50MHz
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Lines
1
Outside Diameter
6mm
Package Quantity
200
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Unshielded
Termination
Axial
Test Frequency
100MHz
Weight
1.4g
Compliance
RoHS
Compliant
Datasheet
Fair-Rite 2961666671 Datasheet
Download the complete datasheet for Fair-Rite 2961666671 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

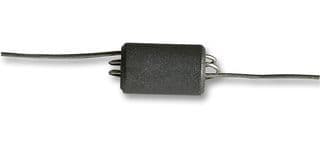

Product Images
