Surface mount fixed inductor with 10nH inductance and 5% tolerance, operating at 250MHz. Features a ceramic core, 600mA current rating, and 130mR resistance. Packaged in a 0805 case with SMD/SMT termination, this unshielded component offers a Q factor of 43 and a self-resonant frequency of 4.3GHz. Operating temperature range is -40°C to 125°C.
Package0805
Resistance130mR
Current Rating600mA
Inductance10nH
Quick Jump:
Technical Specifications
Fastron 0805AS-010J-01 technical specifications.
General
| Package/Case | 0805 |
| Core Material | Ceramic |
| Current Rating | 600mA |
| Height | 1.6mm |
| Inductance | 10nH |
| Length | 2.3mm |
| Material | Ceramic |
| Max DC Current | 600mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Q Factor | 43 |
| Resistance | 130mR |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 250MHz |
| Self Resonant Frequency | 4.3GHz |
| Series | 0805AS |
| Series Resistance | 130mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 250MHz |
| Tolerance | 5% |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Fastron 0805AS-010J-01 Datasheet
Download the complete datasheet for Fastron 0805AS-010J-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

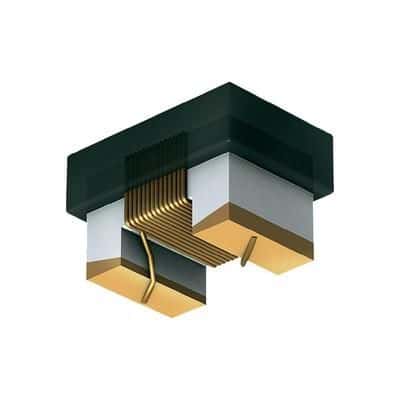

Product Images
