15nH fixed inductor with 5% tolerance, designed for 250MHz operation. Features a compact 0805 SMD/SMT package with ceramic core material. Offers a maximum DC current rating of 600mA and a low series resistance of 170mR. Operating temperature range spans from -40°C to 125°C, with a self-resonant frequency of 3.4GHz. This unshielded inductor is supplied on tape and reel, with 2500 units per package, and is RoHS compliant.
Package0805
Resistance170mR
Current Rating600mA
Inductance15nH
Quick Jump:
Technical Specifications
Fastron 0805AS-015J-01 technical specifications.
General
| Package/Case | 0805 |
| Core Material | Ceramic |
| Current Rating | 600mA |
| Height | 1.6mm |
| Inductance | 15nH |
| Length | 2.3mm |
| Material | Ceramic |
| Max DC Current | 600mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Q Factor | 50 |
| Resistance | 170mR |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 250MHz |
| Self Resonant Frequency | 3.4GHz |
| Series | 0805AS |
| Series Resistance | 170mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 250MHz |
| Tolerance | 5% |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Fastron 0805AS-015J-01 Datasheet
Download the complete datasheet for Fastron 0805AS-015J-01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

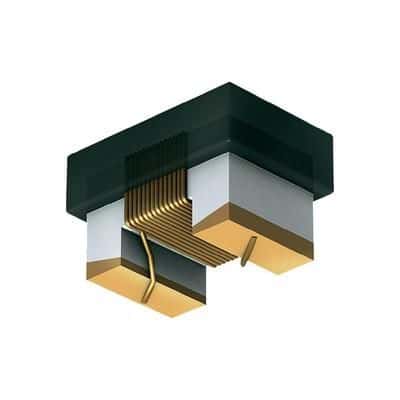

Product Images
