General purpose fixed inductor with 220µH inductance and 20% tolerance. Features a ferrite core and molded package for surface mount (SMD/SMT) termination. Operates with a maximum DC current of 850mA and has a DC resistance of 600mΩ. Designed for a wide operating temperature range from -40°C to 125°C.
PackageMolded
Resistance600mR
Inductance220uH
Quick Jump:
Technical Specifications
Fastron PISM-221M-04 technical specifications.
General
| Package/Case | Molded |
| Core Material | Ferrite |
| DC Current | 850mA |
| DC Resistance (DCR) | 600mR |
| Depth | 9.55mm |
| Height | 5.35mm |
| Inductance | 220uH |
| Length | 13mm |
| Material | Steel |
| Max DC Current | 850mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 600mR |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 100kHz |
| Self Resonant Frequency | 4.1MHz |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 9.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Fastron PISM-221M-04 Datasheet
Download the complete datasheet for Fastron PISM-221M-04 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

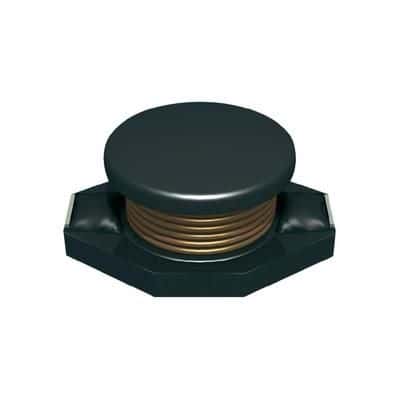

Product Images
