Through-hole quartz crystal operating at 18.432 MHz. Features a frequency tolerance of 30 ppm and frequency stability of 50 ppm. Load capacitance is 20 pF with an ESR of 40 Ohms. Dimensions include a length of 11.35 mm, width of 4.65 mm, depth of 4.65 mm, and height of 3.6 mm. This RoHS compliant component operates within a temperature range of -20°C to 70°C.
Frequency18.432MHz
MountingThrough Hole
Quick Jump:
Technical Specifications
FOX Electronics FOXSLF/184-20 technical specifications.
General
Depth
4.65mm
ESR (Equivalent Series Resistance)
40R
Frequency
18.432MHz
Frequency Stability
50ppm
Frequency Tolerance
30ppm
Height
3.6mm
Lead Free
Lead Free
Lead Pitch
4.88mm
Length
11.35mm
Load Capacitance
20pF
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Frequency
18.432 MHz
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
HC49S
Series Resistance
40R
Termination
Radial
Tolerance
50ppm
Width
4.65mm
Compliance
RoHS
Compliant
Datasheet
FOX Electronics FOXSLF/184-20 Datasheet
Download the complete datasheet for FOX Electronics FOXSLF/184-20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

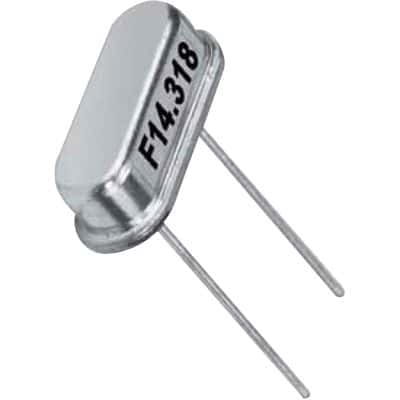

Product Images
