Hi-Speed UART serial adapter cable, featuring a USB Type-A connector to a 10-conductor header. Supports RS-232, RS-422, RS-485, and UART interfaces with a 12Mbps data rate and 12Mbaud baud rate. Operates at 3.3V DC rated voltage, with a 250mA current rating. This lead-free, 1800mm long cable is designed for general applications, with a 24AWG wire gauge and a temperature range of -40°C to 85°C.
Current Rating250mA
MountingCable
Quick Jump:
Technical Specifications
Ftdi C232HD-DDHSP-0 technical specifications.
General
Baud Rate
12Mbaud
Color
Black
Connector Type A
USB
Connector Type B
Header
Current Rating
250mA
Data Rate
12Mbps
Gender
Male to Female
Interface
RS-232, RS-422, RS-485, UART
Lead Free
Lead Free
Length
1800mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Channels
1
Number of Conductors
10
Output Type
RS-232, RS-485
Packaging
Bulk
Reach SVHC Compliant
No
Series
C232HD
DC Rated Voltage
3.3V
Wire/Cable Gauge
24AWG
Compliance
RoHS
Compliant
Datasheet
Ftdi C232HD-DDHSP-0 Datasheet
Download the complete datasheet for Ftdi C232HD-DDHSP-0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

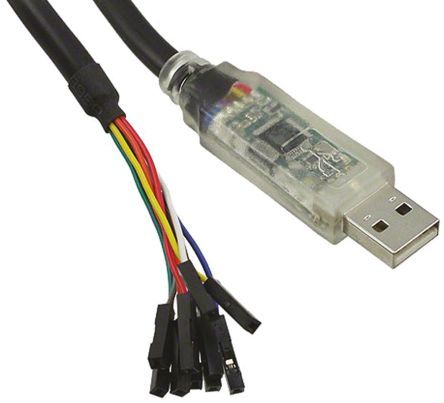

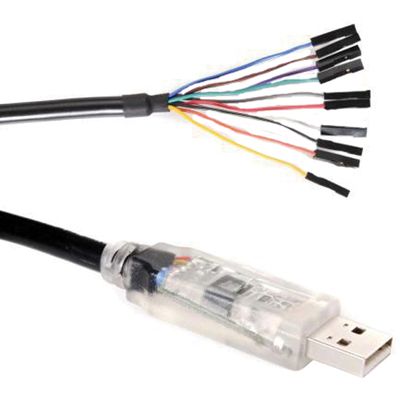

Product Images
