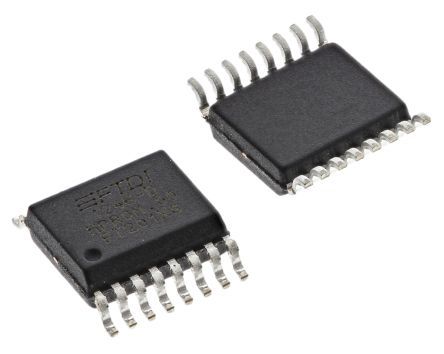

The FT201XS-R is a USBmadeEZ-FIFO I2C UART IC with a data rate of 12Mbps. It is packaged in a surface mount SSOP-16 package. The IC operates over a temperature range of -40°C to 85°C and is powered by a 5.5V supply voltage, drawing an operating current of 8mA. The FT201XS-R is RoHS compliant and is available on a tape and reel in a quantity of one.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ftdi FT201XS-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ftdi FT201XS-R technical specifications.
| Package/Case | SSOP |
| Data Rate | 12Mbps |
| Height | 0.059inch |
| Interface | I2C, UART, USB |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | USBmadeEZ-FIFO, FT-X, X-Chip |
| Weight | 0.004586oz |
| Width | 0.157inch |
| RoHS | Compliant |
