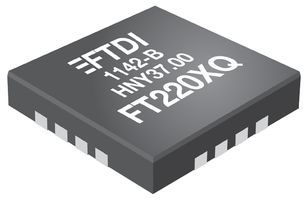

The FT220XQ-R is a USB interface IC with a data rate of 12Mbps. It is packaged in a QFN package and has a height of 0.75mm and dimensions of 4mm in length and width. The IC operates within a temperature range of -40°C to 85°C and requires an operating supply voltage of 5.5V at a current of 10.5mA. It is RoHS compliant and available in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ftdi FT220XQ-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ftdi FT220XQ-R technical specifications.
| Package/Case | QFN |
| Data Rate | 12Mbps |
| Height | 0.75mm |
| Interface | USB |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Current | 10.5mA |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | USBmadeEZ-FIFO, FT-X, X-Chip |
| Weight | 0.002014oz |
| Width | 4mm |
| RoHS | Compliant |
