Technical Specifications
Ftdi FT2232D technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 3Mbps |
| Height | 1.4mm |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Nominal Supply Current | 30mA |
| Number of Channels | 2 |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Operating Supply Voltage | 5.25V |
| RoHS Compliant | Yes |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Ftdi FT2232D Datasheet
Download the complete datasheet for Ftdi FT2232D to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

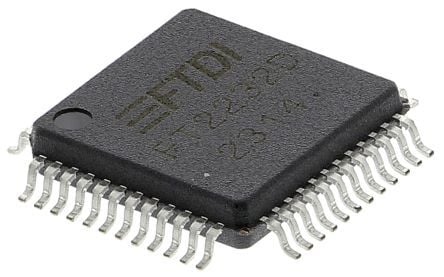

Product Images
