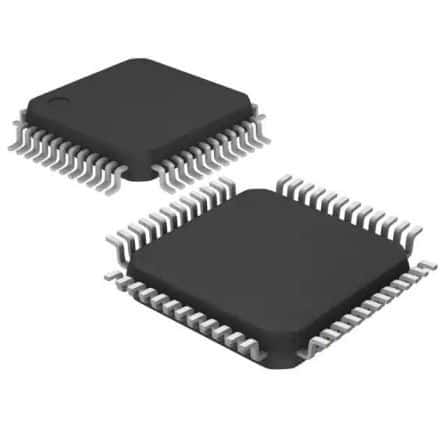

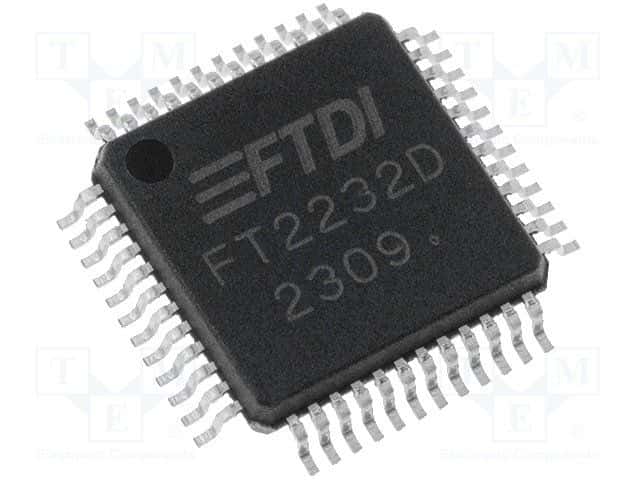

High-performance USB bus controller, featuring UART interface and 12Mbps data rate. This CMOS integrated circuit is housed in a 48-pin LQFP package with a 7x7mm dimension and 0.50mm pitch. Operating across a wide temperature range of -40°C to 85°C, it offers a low operating supply current of 30mA. The component is lead-free and RoHS compliant, supplied in a tray of 250 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ftdi FT2232D-TRAY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Data Rate | 12Mbps |
| Interface | UART |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Operating Supply Current | 30mA |
| Package Quantity | 250 |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | USBmadeEZ-FIFO, FT-X, X-Chip |
| Weight | 0.006409oz |
| RoHS | Compliant |
