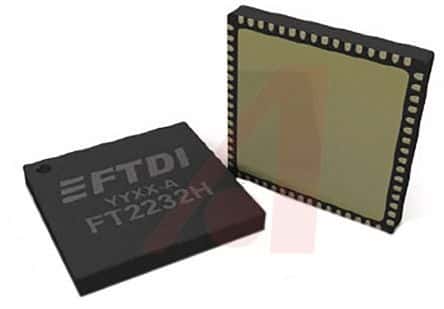

High-speed USB 2.0 interface IC with dual UART/FIFO channels, supporting data rates up to 480Mbps. Features a 3.3V dual supply voltage and 1.8V/3.3V operation, with integrated ESD protection. This surface mount component is housed in a 64-pin LQFP package, measuring 10.1mm x 10.1mm x 1.4mm, and operates within a temperature range of -40°C to 85°C. The device is lead-free, RoHS compliant, and supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ftdi FT2232HL-REEL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Data Rate | 480Mbps |
| Dual Supply Voltage | 3.3V |
| ESD Protection | Yes |
| Height | 1.4mm |
| Interface | UART |
| Lead Free | Lead Free |
| Length | 10.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 1.62V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Transceivers | 4 |
| Operating Supply Current | 70mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | USBmadeEZ-FIFO, FT-X, X-Chip |
| Weight | 0.012088oz |
| Width | 10.1mm |
| RoHS | Compliant |
