Full Speed USB to Serial UART interface IC, supporting USB 1.1 and USB 2.0 standards. Features a single UART channel with a data rate of 12Mbps. Operates from a 2.97V to 5.5V supply voltage, with a nominal supply current of 8mA. Packaged in a 16-pin QFN (4mm x 4mm x 0.75mm) for surface mounting, this lead-free and RoHS compliant component is suitable for operation between -40°C and 85°C.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Ftdi FT230XQ-R technical specifications.
General
| Package/Case | QFN |
| Data Rate | 12Mbps |
| Height | 0.75mm |
| Interface | UART, USB |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Nominal Supply Current | 8mA |
| Number of Channels | 1 |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | USBmadeEZ-UART, FT-X, X-Chip |
| Weight | 0.002014oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Ftdi FT230XQ-R Datasheet
Download the complete datasheet for Ftdi FT230XQ-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

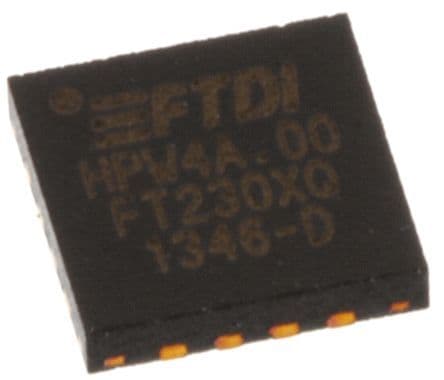

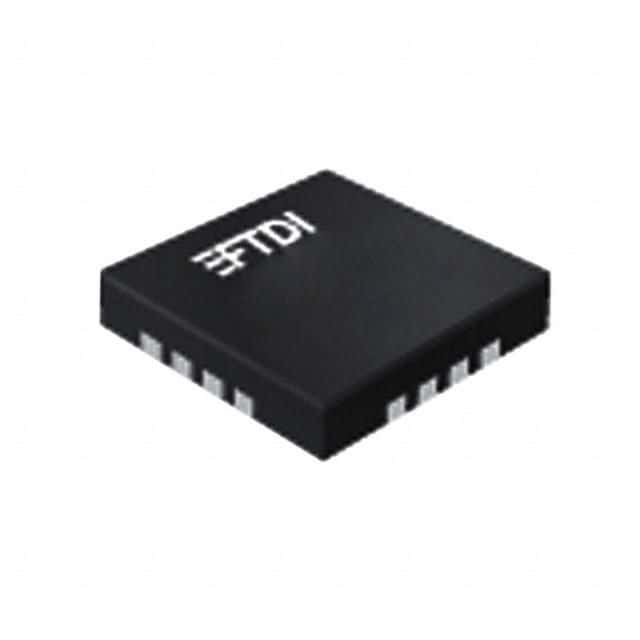

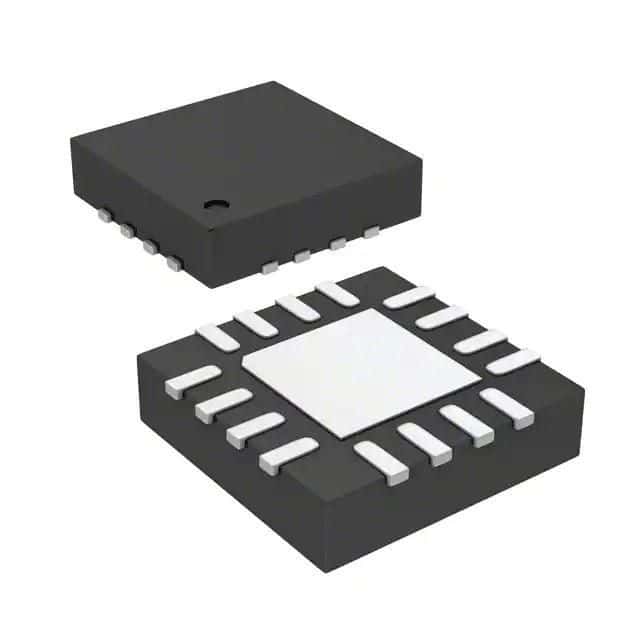

Product Images
