CMOS microprocessor circuit featuring a single UART interface and transceiver, capable of 3Mbps data rates. This surface mount component operates within a 2.97V to 5.5V supply voltage range, with a typical operating voltage of 5V and current draw of 8mA. It offers integrated ESD protection and is RoHS compliant, packaged in a 4mm x 4mm x 0.75mm QFN.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Ftdi FT230XQ-T technical specifications.
General
| Package/Case | QFN |
| Data Rate | 3Mbps |
| ESD Protection | Yes |
| Height | 0.75mm |
| Interface | UART |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Transceivers | 1 |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | USBmadeEZ-UART, FT-X, X-Chip |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Ftdi FT230XQ-T Datasheet
Download the complete datasheet for Ftdi FT230XQ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

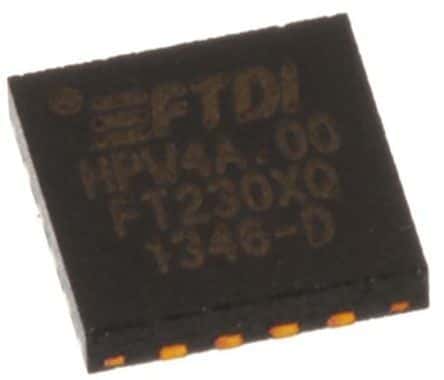

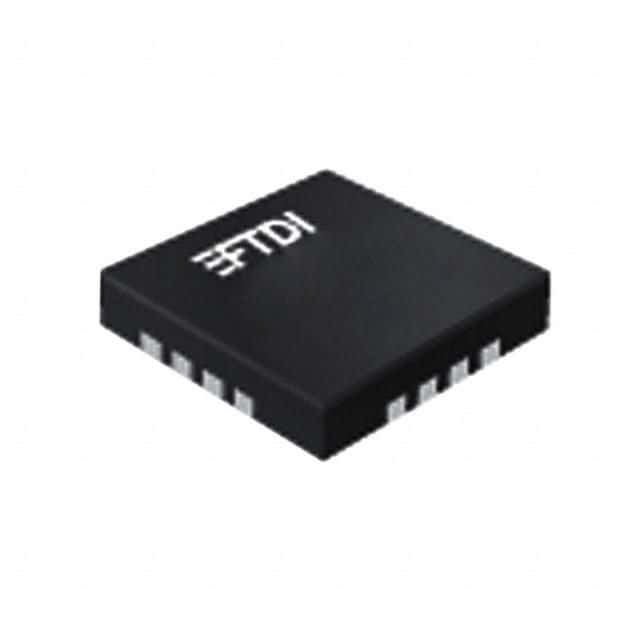

Product Images
