CMOS microprocessor circuit, featuring a single UART interface and USB connectivity. This surface mount device operates with a supply voltage range of 2.97V to 5.5V, a nominal supply current of 8mA, and supports data rates up to 12Mbps. Packaged in SSOP with dimensions of 5mm length, 4mm width, and 1.5mm height, it operates between -40°C and 85°C and is supplied on tape and reel.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Ftdi FT230XS-R technical specifications.
General
Package/Case
SSOP
Data Rate
12Mbps
Height
0.059inch
Interface
UART, USB
Length
5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.97V
Mount
Surface Mount
Nominal Supply Current
8mA
Number of Channels
1
Operating Supply Current
8mA
Operating Supply Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
USBmadeEZ-UART, FT-X, X-Chip
Weight
0.004586oz
Width
0.157inch
Compliance
RoHS
Compliant
Datasheet
Ftdi FT230XS-R Datasheet
Download the complete datasheet for Ftdi FT230XS-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

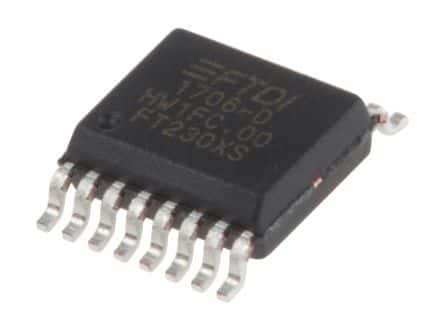

Product Images
