Technical Specifications
Ftdi FT232BQ-REEL technical specifications.
General
| Package/Case | QFN |
| Data Rate | 12Mbps |
| ESD Protection | Yes |
| Height | 0.75mm |
| Interface | UART |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.35V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Transceivers | 1 |
| Operating Supply Current | 25mA |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | USBmadeEZ-UART |
| Weight | 0.006653oz |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Ftdi FT232BQ-REEL Datasheet
Download the complete datasheet for Ftdi FT232BQ-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

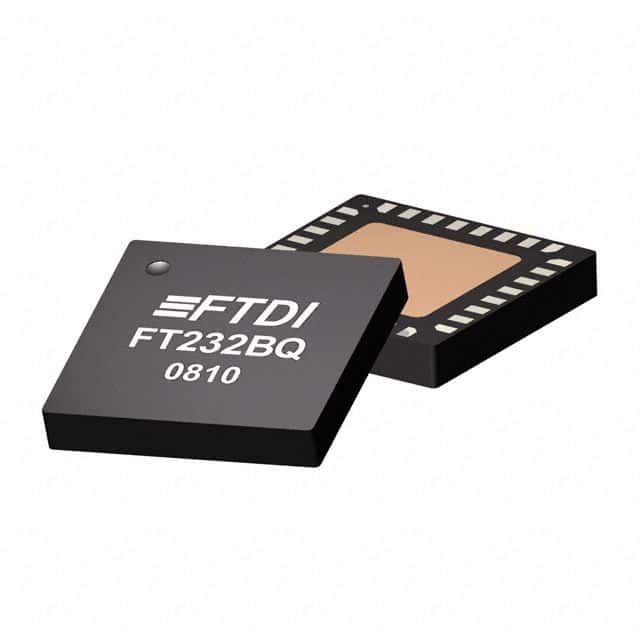

Product Images
