High-speed USB interface device supporting USB 1.1 and USB 2.0, offering UART, RS-232, RS-422, and RS-485 communication interfaces. This single-channel IC operates at 3.3V with a data rate of 12Mbps and a supply voltage range of 2.97V to 3.63V. Packaged in a 48-pin LQFP (7mm x 7mm x 1.4mm) for surface mounting, it features a lead-free design and operates within a temperature range of -40°C to 85°C. RoHS compliant with a typical operating supply current of 24mA.
PackageLQFP
Current60mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Ftdi FT232HL-REEL technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 12Mbps |
| Height | 1.4mm |
| Interface | UART, RS-232, RS-422, RS-485 |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Current | 24mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 60mA |
| Weight | 0.006409oz |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Ftdi FT232HL-REEL Datasheet
Download the complete datasheet for Ftdi FT232HL-REEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

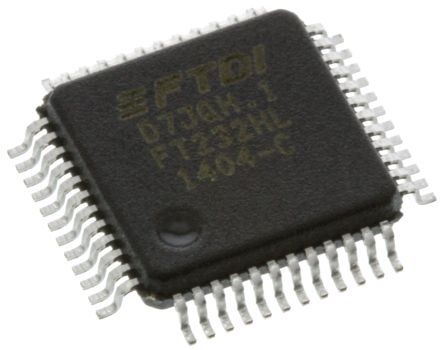

Product Images
